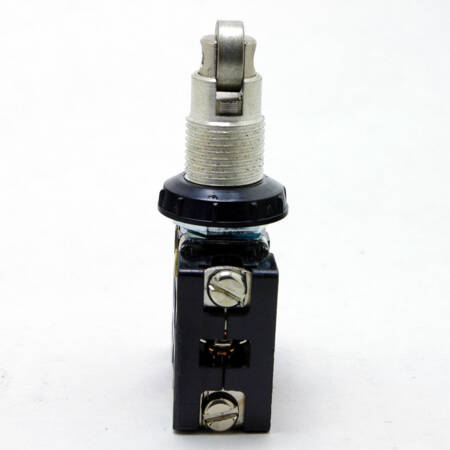

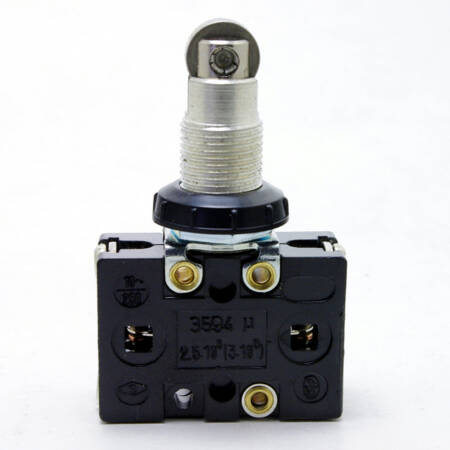

Microswitch - attachment with roller

Packing

1

Switching path (mm)

0,55 max.

Rundown (mm)

4

Run-up (mm)

1,5±1

Controlling force

15 max.

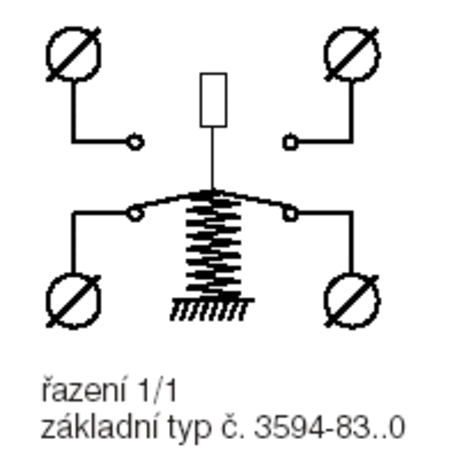

Arrangement

1/1

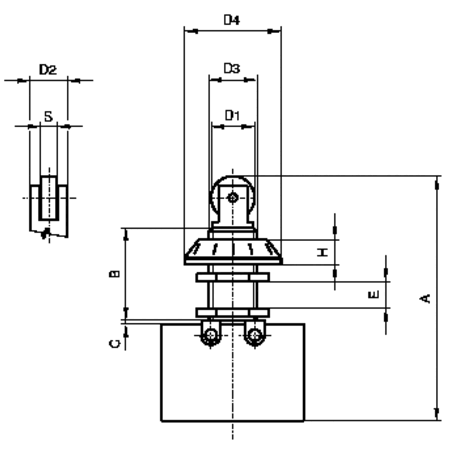

Dimensions (mm)

A = 57,5 B = 17 C = 1,9 D1 = ø 10 D2 = ø 8,4 D3 = M 12 x 1 D4 = ø 22 E = 10 max. H = 5 S = 4
