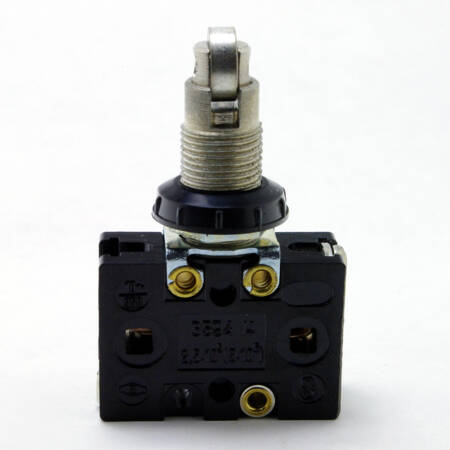

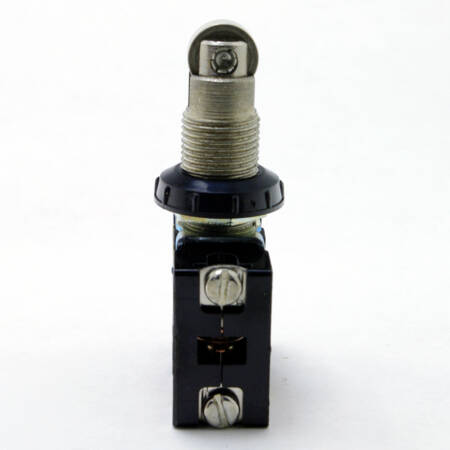

Microswitch - attachment with roller
Packing
1
Switching path (mm)
0,25 max.
Rundown (mm)
4
Run-up (mm)
1,5±1
Controlling force
15 max.

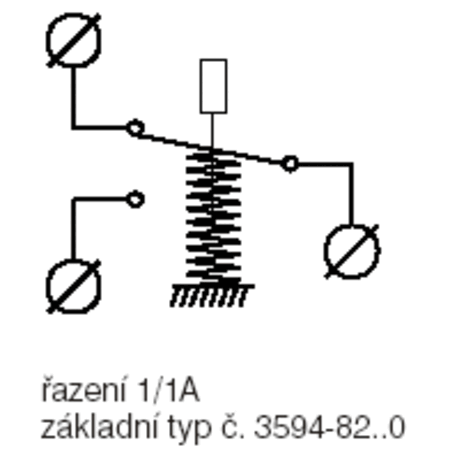

Arrangement
1/1A

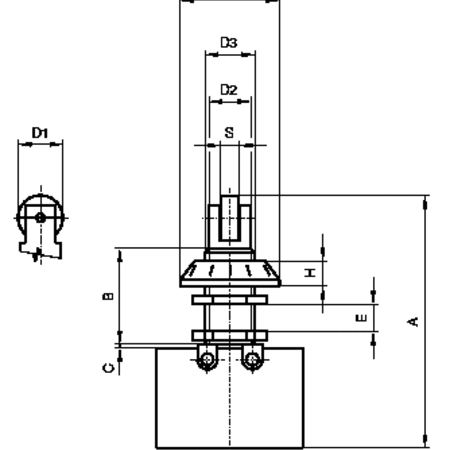

Dimensions (mm)
A = 57,5 B = 17 C = 1,9 D1 = ø 10 D2 = ø 8,4 D3 = M12 x 1 D4 = ø 22 E = 10 max. H = 5 S = 4
