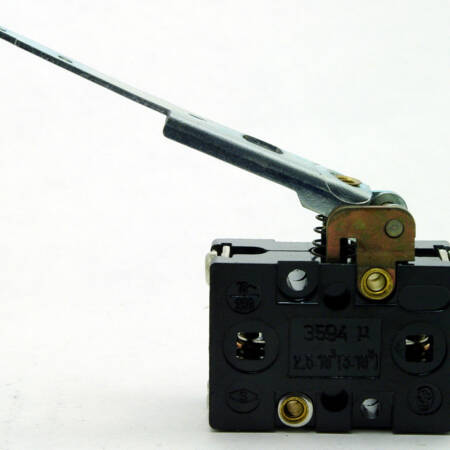

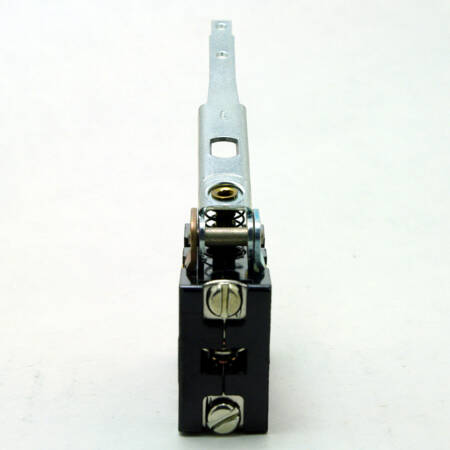

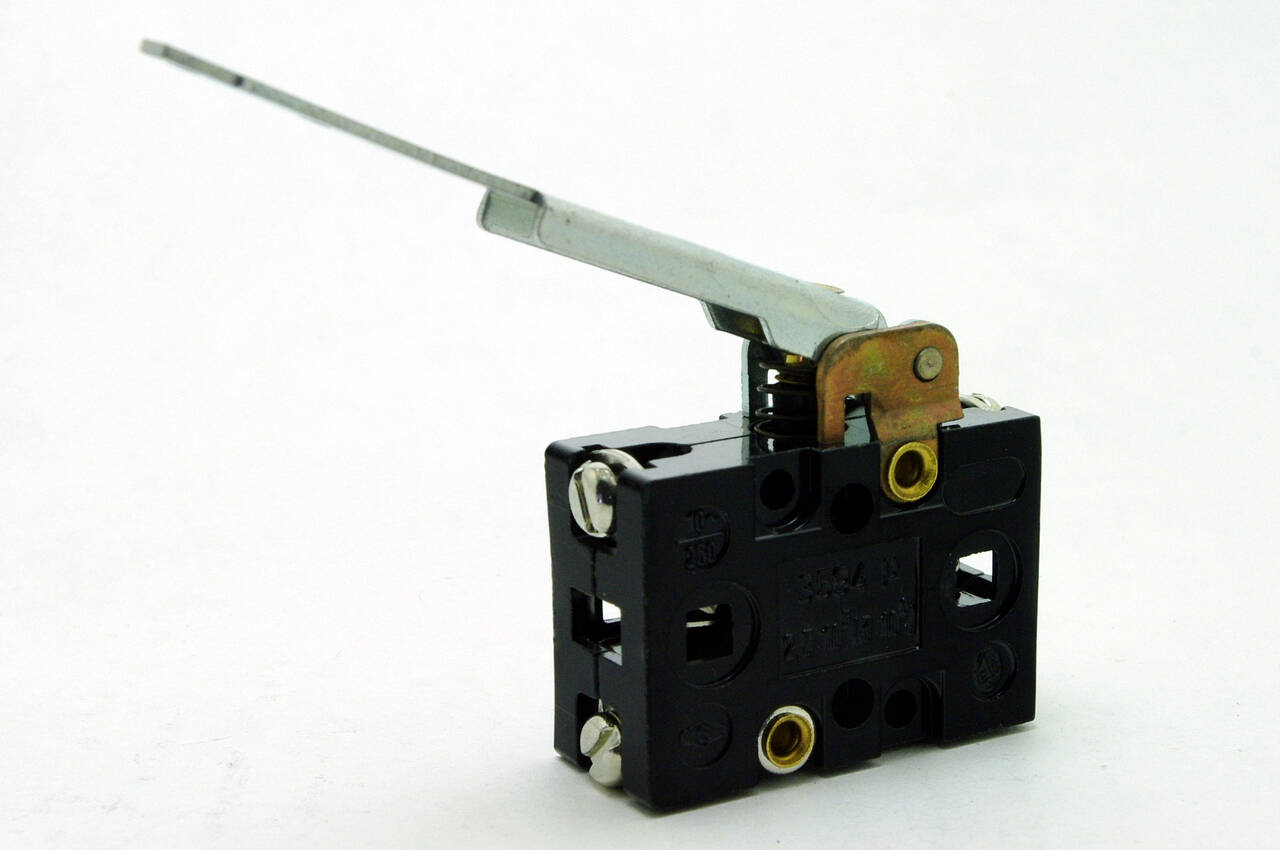

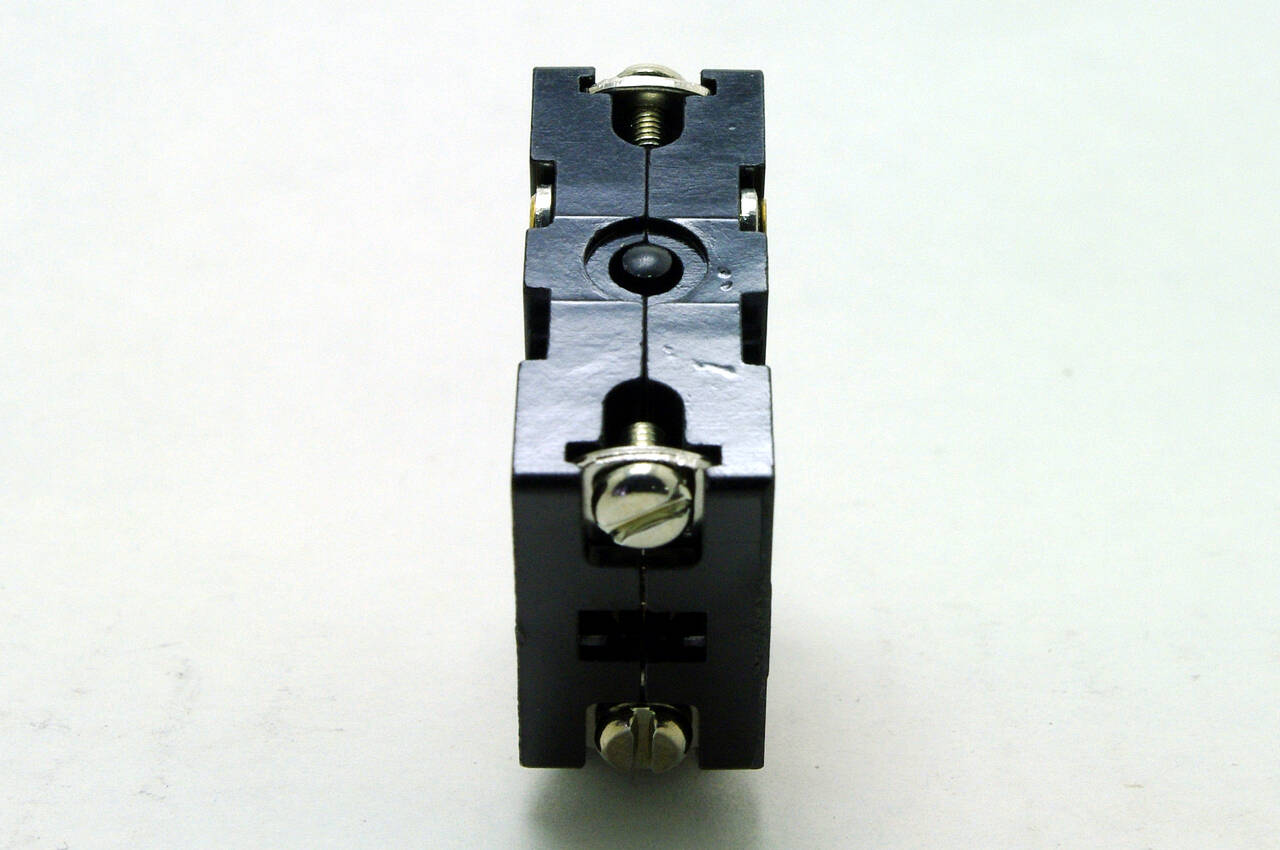

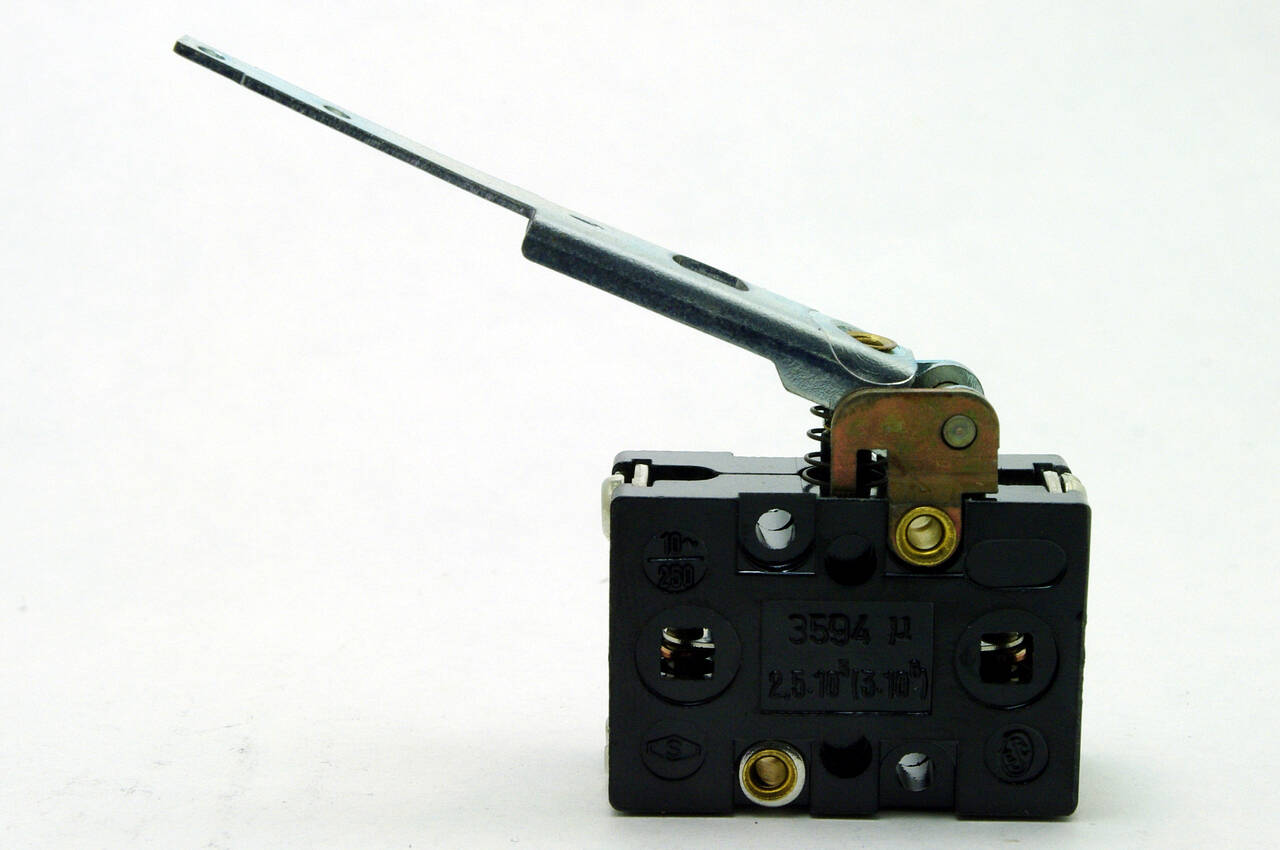

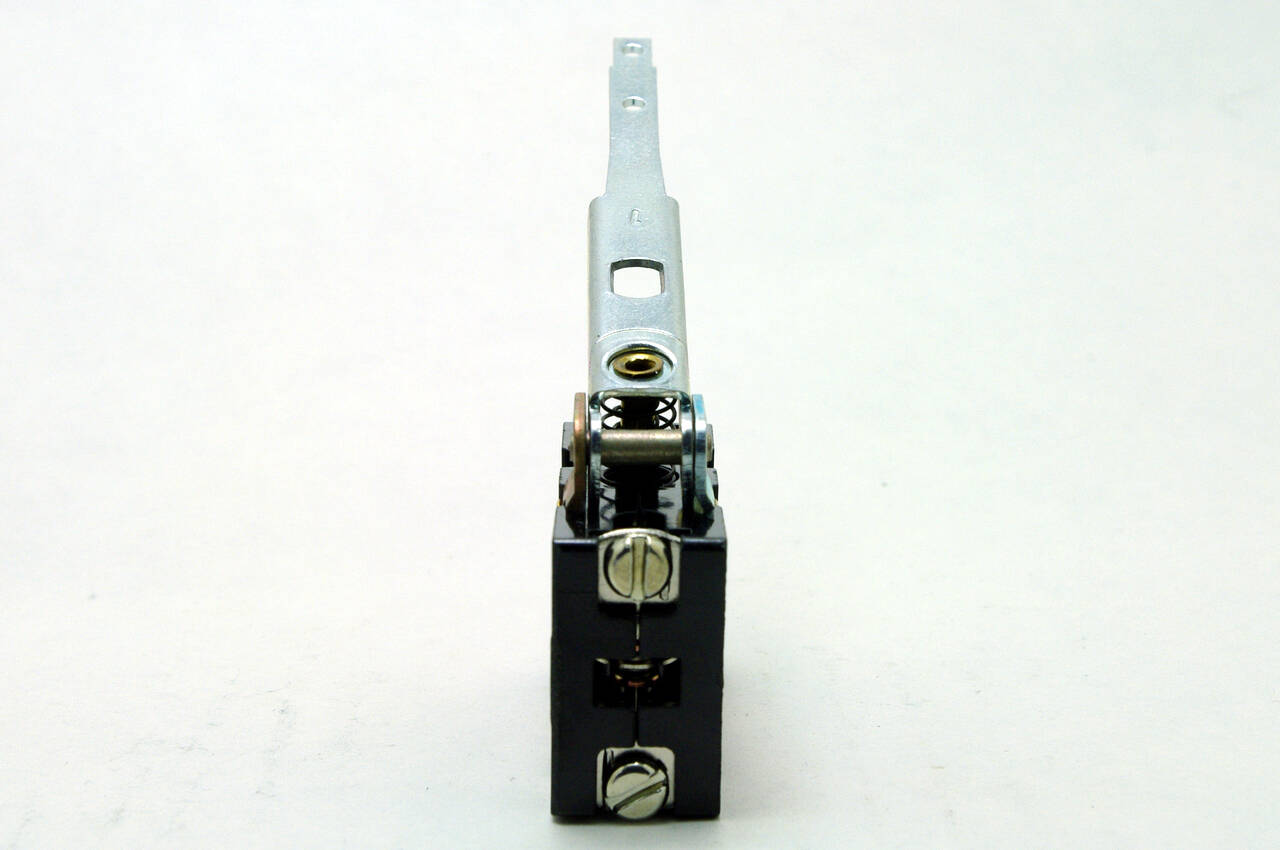

Microswitch - attachment with lever
Packing
1
Switching path (mm)
5 max.
Rundown (mm)
14
Run-up (mm)
8 + 2,5 - 1
Controlling force
0,7 max.

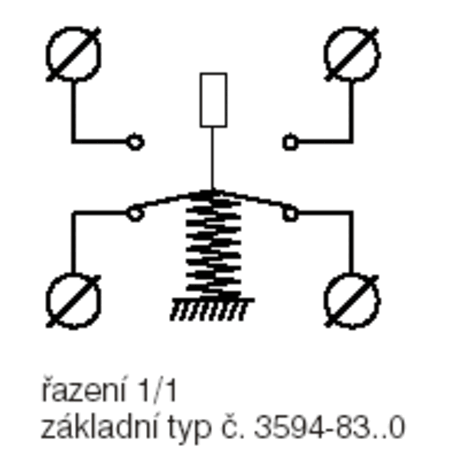

Arrangement
1/1

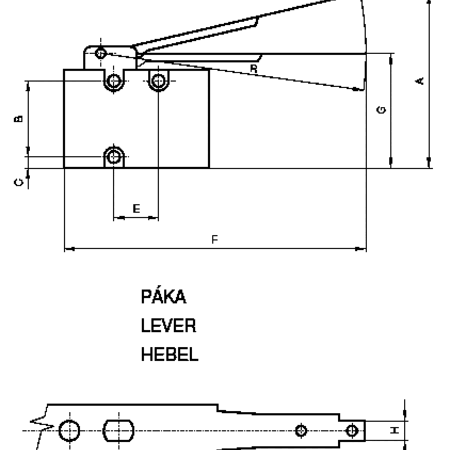

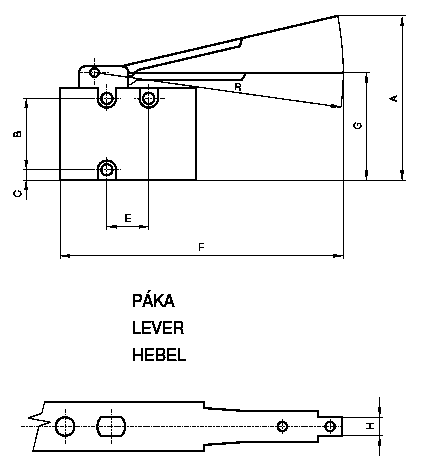

Dimensions (mm)
A = 54,9 B = 19,2 C = 2,9 E = 11 F = 73,5 G = 32,4 H = 4,1 R = 63,5
