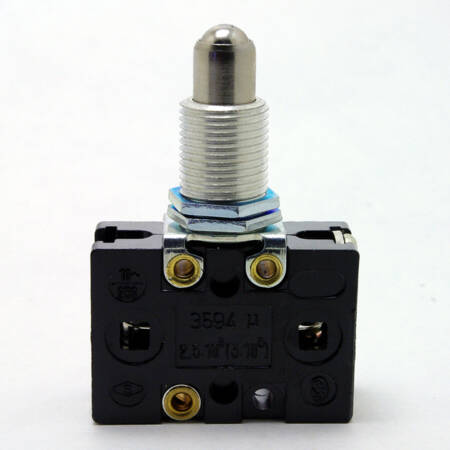

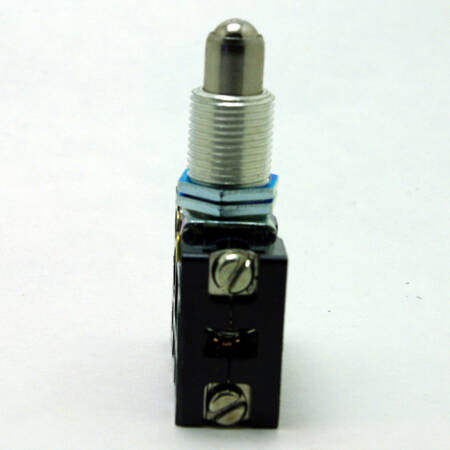

Microswitch - attachment with ball
Packing
1
Switching path (mm)
0,25 max.
Rundown (mm)
4
Run-up (mm)
1,5±1
Controlling force
15 max.

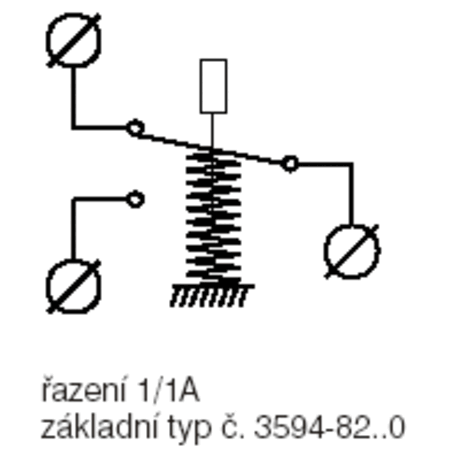

Arrangement
1/1A

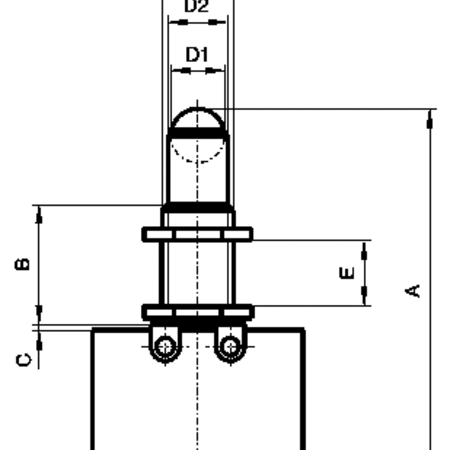

Dimensions (mm)
A = 54 B = 17 C = 1,9 D1 = ø 7,14 D2 = ø 8,4 D3 = M12 x 1 E = 10 max.
