Microswitch - AI version
Number of glands
3
Switching path (mm)
0,25 max.
Rundown (mm)
4
Run-up (mm)
1,5 ± 1
Controlling force
15 max.
Arrangement
1/1A

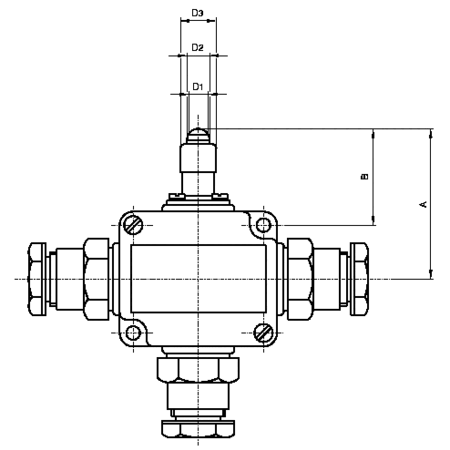

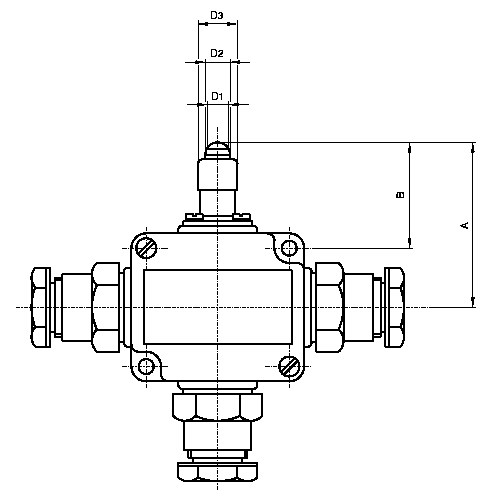

Dimensions (mm)
A = 58,5 B = 37,5 D1 = ø 7,14 D2 = ø 8,4 D3 = ø 16
