3594-82383
Microswitch - AI version
Number of glands
2
Number of caps
1
Switching path (mm)
25 - 47
Rundown (mm)
8 - 30
Run-up (mm)
20 - 66
Controlling force
Controlling force P1 1,2 max. Controlling force P2 0,6 max.
Arrangement
1/1A

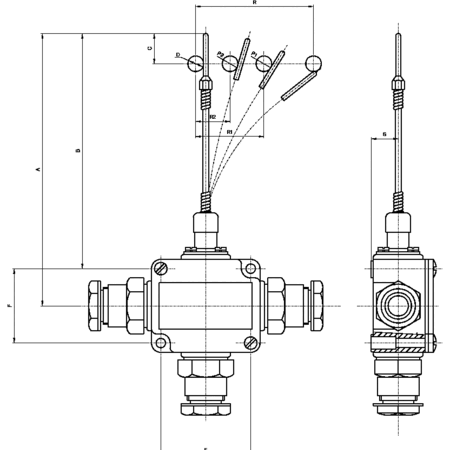

Dimensions (mm)
A = 161 B = 140 C = 21 D = ø 10 E = 50 ± 0,2 F = 42 ± 0,2 R = 70 - 75 S = 16
